Occlusion Assessment & Management

What is the optimal management of partial and complete occlusions of central venous access devices (CVADs) and occluded peripheral intravenous cannulas (PIVCs) for adult and paediatric patients with cancer?

Click to view this PDF online

TERMINOLOGY

Common language facilitates communication between professional and organisations, the translation of evidence into clinical practice, data sharing, and research. CNSA, eviQ and eviQ Education are leading vascular access management and education in cancer care in Australia utilizing common, contemporary terminology (Table 1).

Table 1: CVAD terminology

INTRODUCTION

Occlusion is one of the most frequent Central venous access device (CVAD)complication, occurring in 14-36% of patients (1-14). Occlusions are associated with interruption of therapies, increased risk and cost of occlusion reversal therapies and potential complications related to CVAD reinsertion (15). In the paediatric patient population, overall survival is negatively impacted by CVAD occlusion (16).

Standardised, evidence based clinical guidelines for the prevention, diagnosis, and management of occlusion are lacking (15). Implementation of an algorithm to guide clinical practice in the assessment and appropriate management based on the infusate, CVAD, patient age and catheter material has the potential to improve compliance with evidence based recommendations (17). Furthermore, it is recommended occlusion management is performed by skilled practitioners (4).

Comparatively, in 2021 the Australian Commission on Quality and Safety in Healthcare published the first clinical care standard for the management of peripheral cannulas (18). The aim of this document is to promote standardised, evidence-based clinical care of PIVCs and details ten quality statements or areas of care to reduce PIVC complications. One area of care is regular observation and assessment for signs of complications, for example occlusion (18). Prevention of PIVC occlusion is key as the most efficient use of resources for PIVC occlusion is removal (19).

SUMMARY OF RECOMMENDATIONS

CENTRAL VENOUS ACCESS DEVICES

CNSA recommends the implementation of standardised, evidence based clinical guidelines e.g. a patency management algorithm for the assessment and management of partial and complete occlusions of central venous access device for adult and paediatric patients with cancer (15,17).

CNSA recommends that educated and competent clinicians are involved with occlusion management of central venous access device occlusion for paediatric and adult patients with cancer (4).

PERIPHERAL INTRAVENOUS CANNULA (PIVC)

CNSA recommends that occluded peripheral intravenous cannulas for paediatric and adult patients with cancer are removed (19).

Prevention of PIVC occlusion is key. Recommendations for clinical practices to optimise PIVC patency include: (18,20,21)

  • educated and competent clinicians insert and maintain PIVCs
  • selection of smallest gauge for the prescribed therapy
  • appropriate size and length of cannula for the vein e.g. 20-24 gauge
  • infuse peripherally compatible medications and solutions e.g. osmolarity < 600 Osm/L, avoid extremes in pH
  • stable insertion site: forearm and avoid areas of flexion, chest wall, breast, digits, lower extremities, abdomen veins that are compromised (e.g. bruised, hard)
  • use of vein visualisation technology e.g. near-infrared or ultrasound
  • adequate securement and application of dressing to prevent micromotion and migration e.g. tissue adhesive, bordered dressings, securement device
  • attach short extension tubing with bonded needleless connector to cannula to prevent micromotion
  • refer to flush and lock question

Paediatric patients:

  • avoid fingers, thumbs, hand used for sucking
  • consider forearm, hand, upper arm below axilla, scalp for under 18 months of age, foot if not walking

SECTION A: CENTRAL VENOUS ACCESS DEVICES

1. Summary of Evidence

Patency assessment includes the aspiration AND the injection ability of a CVAD (22).

Investigate any deviance from easy aspiration and injection to assess the potential different types of occlusion including:

  1. Mechanical (3,19,23-29)
  2. Venous thrombosis (24)
  3. Chemical (8,9,19,25,26,28,30-32)
  4. Thrombotic _1-4,6-9,15,19,23-26,28,29,32-50)

Radiological studies: investigate if thrombolytics are not successful (25,26,33,39,45,49-52)

Final step: exchange or removal if previous interventions are not successful (9,25,28-32,49)

Implement a patency algorithm for standardised, evidence based prevention, assessment, and management (17).

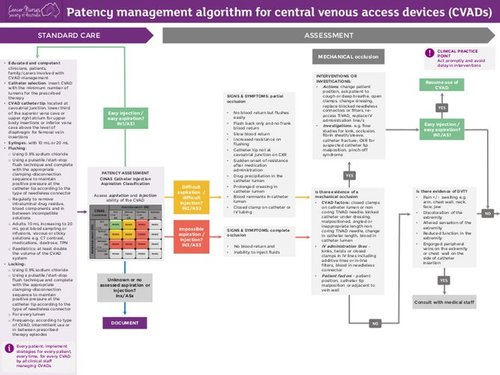

Refer to Patency Management Algorithm For Central Venous Access Devices (CVADS)

Refer to Summary of Evidence: Occlusions for a detailed summary of evidence

SECTION B: PERIPHERAL INTRAVENOUS CANNULA (PIVC)

Patency assessment includes the aspiration AND the injection ability of a CVAD (22).

There is no evidence regarding the management of occluded PIVCs. Expert opinion is to remove occluded PIVCs as the most efficient for resource management (19).

Vascular access evidence and recommendations for all patient populations identify that prevention of occlusion is key. Recommendations for clinical practices to optimise PIVC patency include: (18,20,21)

  • educated and competent clinicians insert and maintain PIVCs
  • selection of smallest gauge for the prescribed therapy
  • appropriate size and length of cannula for the vein e.g. 20-24 gauge
  • infuse peripherally compatible medications and solutions e.g. osmolarity < 600 Osm/L, avoid extremes in pH
  • stable insertion site: forearm and avoid areas of flexion, chest wall, breast, digits, lower extremities, abdomen veins that are compromised (e.g. bruised, hard)
  • use of vein visualisation technology e.g. near-infrared or ultrasound
  • adequate securement and application of dressing to prevent micromotion and migration e.g. tissue adhesive, bordered dressings, securement device
  • attach short extension tubing with bonded needleless connector to cannula to prevent micromotion
  • refer to flush and lock question

Paediatric patients:

  • avoid fingers, thumbs, hand used for sucking
  • consider forearm, hand, upper arm below axilla, scalp for under 18 months of age, foot if not walking

Refer to Patency Management Algorithm For Central Venous Access Devices (CVADS).

REFERENCES

1. Tsao K, Fuller CL, Green HL, Jacquez RA, Jackson AA, Andrassy RJ, et al. Risk factors and treatment of port thrombosis in pediatric oncology patients. J Surg Res. 2010;158(2):367-8.

2. Stammers D, Connolly B, Brandao LR, Zupanec S, Gupta S. Evaluation of the need for chest X-rays in the management of asymptomatic, intraluminal vascular access device occlusion in childhood cancer. Pediatr Blood Cancer. 2017;64(7).

3. Mason TM, Ferrall SM, Boyington AR, Reich RR. Central Venous Access Devices: An Investigation of Oncology Nurses' Troubleshooting Techniques. Clin J Oncol Nurs. 2014;18(4):421-5.

4. MacLean J, MacDonald T, Digout C, Smith N, Rigby K, Kulkarni K. Need for tissue plasminogen activator for central venous catheter dysfunction is significantly associated with thrombosis in pediatric cancer patients. Pediatr Blood Cancer. 2018;65(6):1-.

5. Holt D, Lawrence S. The Influence of a Novel Needleless Valve on Central Venous Catheter Occlusions in Pediatric Patients. JAVA - Journal of the Association for Vascular Access. 2015;20(4):214-20.e2.

6. Borretta L, MacDonald T, Digout C, Smith N, Fernandez CV, Kulkarni K. Peripherally Inserted Central Catheters in Pediatric Oncology Patients: A 15-Year Population-based Review From Maritimes, Canada. J Pediatr Hematol Oncol. 2018;40(1):e55-e60.

7. Granic M, Zdravkovic D, Krstajic S, Kostic S, Simic A, Sarac M, et al. Totally implantable central venous catheters of the port-acath type: complications due to its use in the treatment of cancer patients. J. 2014;19(3):842-6.

8. Buchini S, Scarsini S, Montico M, Buzzetti R, Ronfani L, Decorti C. Management of central venous catheters in pediatric onco-hematology using 0.9% sodium chloride and positive-pressure-valve needleless connector. Eur J Oncol Nurs. 2014;18(4):393-6.

9. Cesaro S, Tridello G, Cavaliere M, Magagna L, Gavin P, Cusinato R, et al. Prospective, randomized trial of two different modalities of flushing central venous catheters in pediatric patients with cancer. J Clin Oncol. 2009;27(12):2059-65.

10. Hung CY, Chiu SY, Shum SK, Chan HY, Cheuk DKL, Chiang AKS, et al. Surveillance on central venous catheter complications in paediatric haematology-oncology unit. Pediatric Blood and Cancer. 2013;60(S3):184.

11. Chong LM, Chow YL, Kong SS, Ang E. Maintenance of patency of central venous access devices by registered nurses in an acute ambulatory setting: an evidence utilisation project. Int. 2013;11(1):20-5.

12. Giordano P, Saracco P, Grassi M, Luciani M, Banov L, Carraro F, et al. Recommendations for the use of long-term central venous catheter (CVC) in children with hemato-oncological disorders: management of CVC-related occlusion and CVC-related thrombosis. On behalf of the coagulation defects working group and the supportive therapy working group of the Italian Association of Pediatric Hematology and Oncology (AIEOP). Ann Hematol. 2015;94(11):1765-76.

13. Jain SA, Shukla SN, Talati SS, Parikh SK, Bhatt SJ, Maka V. A retrospective study of central venous catheters GCRI experience. Indian J Med Paediatr Oncol. 2013;34(4):238-41.

14. Kang J, Chen W, Sun W, Ge R, Li H, Ma E, et al. Peripherally inserted central catheter-related complications in cancer patients: a prospective study of over 50,000 catheter days. The Journal of Vascular Access. 2017;18(2):153-7.

15. Carvalho da Costa AC, Ribeiro JM, Vasques CI, De Luca Canto G, Porporatti AL, dos Reis PED. Interventions to obstructive long-term central venous catheter in cancer patients: a meta-analysis. Support Care Cancer. 2019;27:407-21.

16. Athale UH, Siciliano S, Cheng J, Thabane L, Chan AK. Central venous line dysfunction is an independent predictor of poor survival in children with cancer. J Pediatr Hematol Oncol. 2012;34(3):188-93.

17. Durning S. Multidisciplinary team approach to develop aiorithms to guide clinical practice for key issues in pediatric vascular access. JAVA - Journal of the Association for Vascular Access. 2011;16 (4):214-5.

18. Australian Commission on Safety and Quality in Health Care. Management of Peripheral Intravenous Catheters Clinical Care Standard. In: Australian Commission on Safety and Quality in Health Care, editor. Sydney2021.

19. Gabriel J. Vascular device occlusion: causes, prevention and management. Nursing standard (Royal College of Nursing (Great Britain) : 1987). 2011;25(44):49-55.

20. Canadian Vascular Access Association. Canadian Vascular Access and Infusion Therapy Guidelines. Pembroke, ON: Pappin Communications.; 2019.

21. Gorski LA, Hadaway L, Hagle ME, Broadhurst D, Clare S, Kleidon T, et al. Infusion Therapy Standards of Practice, 8th Edition. J Infus Nurs. 2021;44(1S).

22. Goossens GA, De Waele Y, Jérôme M, Fieuws S, Janssens C, Stas M, et al. Diagnostic accuracy of the Catheter Injection and Aspiration (CINAS) classification for assessing the function of totally implantable venous access devices. Supportive Care in Cancer. 2016(July 26th).

23. Gerceker GO, Sevgili SA, Yardimci F. Impact of flushing with aseptic non-touch technique using pre-filled flush or manually prepared syringes on central venous catheter occlusion and bloodstream infections in pediatric hemato-oncology patients: A randomized controlled study. Eur J Oncol Nurs. 2018;33:78-84.

24. Linnemann B. Management of complications related to central venous catheters in cancer patients: an update. Semin Thromb Hemost. 2014;40(3):382-94.

25. Tabatabaie O, Kasumova GG, Eskander MF, Critchlow JF, Tawa NE, Tseng JF. Totally Implantable Venous Access Devices: A Review of Complications and Management Strategies. Am J Clin Oncol. 2017;40(1):94-105.

26. Linnemann B, Lindhoff-Last E. Risk factors, management and primary prevention of thrombotic complications related to the use of central venous catheters. Vasa. 2012;41(5):319-32.

27. Goossens GA, Stas M, Moons P. Management of functional complications of totally implantable venous access devices by an advanced practice nursing team: 5 years of clinical experience. Eur J Oncol Nurs. 2012;16(5):465-71.

28. Hitchcock J. Preventing intraluminal occlusion in peripherally inserted central catheters. Br J Nurs. 2016;25(19):S12-S8.

29. Bonciarelli G, Batacchi S, Biffi R, Buononato M, Damascelli B, Ghibaudo F, et al. GAVeCeLT consensus statement on the correct use of totally implantable venous access devices for diagnostic radiology procedures. J. 2011;12(4):292-305.

30. Schulmeister L. Management of non-infectious central venous access device complications. Semin Oncol Nurs. 2010;26(2):132-41.

31. Zaghal A, Khalife M, Mukherji D, El Majzoub N, Shamseddine A, Hoballah J, et al. Update on totally implantable venous access devices. Surg Oncol. 2012;21(3):207-15.

32. Cesaro S, Cavaliere M, Pegoraro A, Gamba P, Zadra N, Tridello G. A comprehensive approach to the prevention of central venous catheter complications: results of 10-year prospective surveillance in pediatric hematology-oncology patients. Ann Hematol. 2016;95(5):817-25.

33. Dal Molin A, Clerico M, Baccini M, Guerretta L, Sartorello B, Rasero L. Normal saline versus heparin solution to lock totally implanted venous access devices: Results from a multicenter randomized trial. Eur J Oncol Nurs. 2015;19(6):638-43.

34. Zottele Bomfim GA, Wolosker N, Yazbek G, Bernardi CV, Valentim LA, De Castro TM, et al. Comparative study of valved and nonvalved fully implantable catheters inserted via ultrasound-guided puncture for chemotherapy. Ann Vasc Surg. 2014;28(2):351-7.

35. Schiffer CA, Mangu PB, Wade JC, Camp-Sorrell D, Cope DG, El-Rayes BF, et al. Central venous catheter care for the patient with cancer: American Society of Clinical Oncology clinical practice guideline. J Clin Oncol. 2013;31(10):1357-70.

36. Fleury M, Guignard B, Fonzo-Christe C, Bonnabry P. Subcutaneously implanted port-chamber central venous catheters: Prevention and care of occlusion. European Journal of Hospital Pharmacy. 2014;21 (Supplement 1):A25.

37. Kim HJ, Yun J, Kim HJ, Kim KH, Kim SH, Lee SC, et al. Safety and effectiveness of central venous catheterization in patients with cancer: prospective observational study. J Korean Med Sci. 2010;25(12):1748-53.

38. van Miert C, Hill R, Jones L. Interventions for restoring patency of occluded central venous catheter lumens. Cochrane Database Syst Rev. 2012(4).

39. Muguet S, Couraud S, Perrot E, Claer I, Souquet PJ. Clearing obstructed totally implantable central venous access ports: an efficient protocol using a second needle. Support Care Cancer. 2012;20(11):2859-64.

40. Anderson DM, Pesaturo KA, Casavant J, Ramsey EZ. Alteplase for the treatment of catheter occlusion in pediatric patients. Ann Pharmacother. 2013;47(3):405-9.

41. Bain J, Goodgame B, Mehringer S, Crago J, Jansen S. Association of bloodstream infection with central venous catheter administration of alteplase. Crit Care Med. 2018;46 (Supplement 1):60.

42. Rosenbluth G, Tsang L, Vittinghoff E, Wilson S, Wilson-Ganz J, Auerbach A. Impact of decreased heparin dose for flush-lock of implanted venous access ports in pediatric oncology patients. Pediatr Blood Cancer. 2014;61(5):855-8.

43. Ociepa T, Maloney E, Urasinski T, Sawicki M. Thrombotic complications of tunneled central lines in children with malignancy. J Pediatr Hematol Oncol. 2010;32(2):88-92.

44. Wells J, Sharif B, Najran P, Hughes A, Hawkins J, Bromley P, et al. How effective are urokinase and lineograms in the management of hickman line occlusions? Pediatric Blood and Cancer. 2011;57 (5):752.

45. Bradford NK, Edwards RM, Chan RJ. Heparin versus 0.9% sodium chloride intermittent flushing for the prevention of occlusion in long term central venous catheters in infants and children. Cochrane Database Syst Rev. 2015(11).

46. Lee AC, Ong ND. Can implanted venous access ports remain patent without maintenance flush-lock? Pediatr Blood Cancer. 2014;61(12):2326.

47. Diaz JA, Rai SN, Wu X, Chao JH, Dias AL, Kloecker GH. Phase II Trial on Extending the Maintenance Flushing Interval of Implanted Ports. J Oncol Pract. 2017;13(1):e22-e8.

48. Sirilerttrakul S, Jirajarus M, Ngamphiaboon N. Nurses role in declotting thrombotic occlusion via implanted port in ramathibodi hospital. Cancer Nurs. 2016;39 (6 Supplement 1):S16-S7.

49. Heibl C, Trommet V, Burgstaller S, Mayrbaeurl B, Baldinger C, Koplmuller R, et al. Complications associated with the use of Port-a-Caths in patients with malignant or haematological disease: a single-centre prospective analysis. Eur J Cancer Care (Engl). 2010;19(5):676-81.

50. Jackson A, Dougherty L, Kumwenda J. Prospective audit to study synerkinase use to restore patency in occluded central venous catheters in haematology and oncology patients - interim results from a multicentre study. J. 2019;20 (1):NP4-NP5.

51. Redkar R, Bangar A, Krishnan J, Raj V, Swathi C, Joshi S. Role of Chemoports in Children with Hematological/Solid Tumor Malignancies - Technical Implications and Complications: An Institutional Experience. J Indian Assoc Pediatr Surg. 2019;24(1):27-30.

52. Sofue K, Arai Y, Takeuchi Y, Sugimura K. Flow confirmation study for central venous port in oncologic outpatient undergoing chemotherapy: Evaluation of suspected system-related mechanical complications. Eur J Radiol. 2013;82(11):e691-e6.
